How to Seal Door Gaps and Insulate Doors for Winter: A Complete Location-by-Location Guide

To seal door gaps for winter, work through four locations in order: the bottom gap (door sweep or threshold seal), the side and top frame gaps (weatherstripping), the frame-to-wall junction (exterior caulk), and the corner joints (corner seals). Identify all air leaks first with a candle flame or paper slip test, then choose the appropriate material for each location.

A gap as narrow as 1/8 inch running the full length of an exterior door lets in as much cold air as leaving a small window open all winter. Knowing how to seal door gaps correctly, by location rather than by method, eliminates drafts that generic guides miss. This guide also covers how to insulate doors for winter, including sliding glass and French patio configurations, and when persistent drafts mean the door itself needs replacing.

Why Sealing Door Gaps Matters: The Energy and Comfort Case

Understanding the scale of the problem helps prioritize the fix. Insulating doors for winter is not just a comfort measure. It is a direct reduction in heating cost. The US Department of Energy estimates that air leaks account for 25 to 40 percent of residential heating energy loss, and exterior and patio doors are consistently among the top sources, especially in homes more than 10 years old where original weatherstripping has worn down and thresholds have settled.

A door that appears fully closed can still allow significant air infiltration if the weatherstripping is compressed flat, the threshold seal is worn, or the exterior caulk has cracked. The result is a heating system that runs longer to maintain the same indoor temperature, a room that feels cold regardless of the thermostat setting, and utility costs that climb each winter without an obvious explanation.

See more: What Is a Swing Door? Types of Swing Doors Explained

How to Find All Door Gaps Before You Seal

Sealing is only effective when all air pathways are identified first. Sealing one gap while missing another nearby location reduces the overall benefit significantly. Use at least two of the three methods below before purchasing any sealing materials, so you know exactly which locations need attention.

The Candle or Incense Test

Close all windows in the room to eliminate cross-ventilation. Hold a lit candle or incense stick approximately 1 inch from the door edge at several points: the full perimeter including corners, the bottom gap between door and floor, around any glass panels, and near the keyhole if present. Any flickering or horizontal smoke movement indicates an air pathway at that location. Mark each affected spot with painter's tape before moving to the next.

The Paper Slip Test

Close the door fully on a standard sheet of paper at different heights along each side and across the top. If the paper pulls out without resistance, the weatherstripping at that location has lost its compression. A properly compressed seal should hold the paper with moderate resistance. Repeat this test at 12-inch intervals around the full perimeter to identify exactly where the seal has failed versus where it is still performing.

The Flashlight Test

At night, have one person shine a bright flashlight slowly along every door edge from inside the room while you stand outside and observe. Any visible light line or point indicates a gap large enough to require attention. This method is especially useful for identifying large gaps at the frame-to-wall junction or structural gaps at the door corners where weatherstripping alone will not fully close the opening.

Read more: How to Adjust French Doors to Stop Draughts

Choosing the Right Sealing Material: Types Compared

Different gap locations require different materials, and using the wrong type is the most common reason a sealing project fails to eliminate drafts. The table below covers every material relevant to how to seal front door gaps and other exterior door configurations.

Foam tape is the fastest short-term fix but the shortest-lived. Vinyl V-strip and threshold seals provide the best long-term performance at their respective locations. Always use exterior caulk on the outside frame perimeter regardless of other fixes. Most doors require three or four of these materials across different locations to achieve a complete seal.

How to Seal Door Gaps by Location

Working through every gap location in a systematic order prevents missing a source of air infiltration. This is the core framework for how to seal door gaps correctly, whether you are addressing a front entry door, a back door, or a side door to the garage or utility area. Start at the bottom and work up.

Step 1: Seal the Bottom Gap (Sweep and Threshold)

The bottom gap between the door base and the floor or threshold is typically the largest single source of cold air infiltration on any exterior door. Two components address this area: the door sweep, which attaches to the bottom of the door itself, and the threshold seal, which is a gasket or insert on the threshold that the door closes against.

For most residential exterior doors, an automatic door sweep provides the best combination of effectiveness and daily usability: it drops to seal when the door closes and lifts slightly as the door opens, preventing drag on floor surfaces. Screw-mounted sweeps are significantly more durable than adhesive versions on high-traffic doors. If the existing threshold is worn, cracked, or sunken, a replacement threshold or add-on threshold seal is necessary because no door sweep compensates for a damaged contact surface.

Step 2: Seal the Side and Top Frame Gaps (Weatherstripping)

Weatherstripping applied to the door stop, the small raised strip inside the door frame that the door panel closes against, seals the perimeter gap on three sides. The surface must be clean and dry before any adhesive weatherstripping is applied, as adhesion fails within weeks on dusty, oily, or painted-over surfaces.

Vinyl V-strip tension seal is the most durable option for wood frames and creates a near-invisible seal. Self-adhesive rubber or EPDM foam tape is easier to install and suitable for metal or composite frames. For any weatherstripping to function correctly, the door should close with light resistance at every point around the perimeter, confirming that compression is occurring at each location. Use the paper slip test to verify after installation.

Step 3: Caulk the Frame-to-Wall Junction

The gap between the exterior door casing and the house wall surface is one of the most consistently missed locations in any front door gap sealing project. This exterior perimeter joint cracks as the house settles, as wood expands and contracts seasonally, and as original caulk ages. Use a paintable, flexible exterior caulk rated for your climate zone. Remove all old, cracked caulk completely before applying fresh material, as new caulk applied over failed caulk does not bond correctly. Apply in a continuous bead, smooth immediately with a wet finger, and allow the full cure time before painting over the joint.

Step 4: Seal the Corner Joints

The corners where side weatherstripping meets the top weatherstripping are natural air leak points because two separate pieces of material meet without a continuous seal. Pre-formed corner seals address this directly. Alternatively, cutting the weatherstripping at a 45-degree miter angle at each corner and pressing the two pieces tightly together eliminates the gap. This step takes under 10 minutes per door and eliminates a leakage point that undermines the effectiveness of every other seal already in place.

How to Insulate Patio Doors for Winter

Patio doors, including sliding glass and French-style patio configurations, present different sealing challenges than standard hinged doors. Knowing how to insulate patio doors for winter requires addressing longer perimeter contact lengths, larger glass surface areas, and operating mechanisms that are specific to each door type.

Sealing Sliding Patio Doors

Sliding glass doors have three primary gap locations: the meeting rail where the two panels overlap in the center, the top and bottom track channels, and the frame perimeter. The meeting rail is typically sealed with a strip of pile weatherstripping, also called fin seal, which compresses when the door is closed. When pile weatherstripping wears flat, it requires replacement rather than supplementing, because adding material over worn pile creates uneven compression.

The bottom track accumulates debris and pet hair over time, which compresses the weatherstripping and prevents it from fully sealing. Vacuum and clean the track thoroughly before assessing whether new weatherstripping is needed. On sliding doors that have been in use for several years, the door panel often rises slightly out of the bottom track due to roller wear. Adjusting the bottom rollers to reseat the panel correctly is the first step before applying any new sealing material, as a panel that is riding too high creates a gap that no weatherstripping can close.

For the large glass surface area, interior thermal window film applied to the glass panels reduces heat transmission through the glass itself without affecting door operation. This is particularly effective in homes where the patio door glass is single-pane or older double-pane with a failed seal.

For sliding patio doors where the seal has deteriorated to the point that sealing materials no longer maintain airtightness, upgrading to a well-insulated unit resolves the issue at the source. Our vinyl sliding patio doors collection includes models with integrated multi-point compression sealing and thermally broken frames designed to maintain airtightness across full temperature cycles.

See more: Are Sliding Glass Doors Safe? What Every Homeowner Needs to Know

Sealing French Patio Doors

French patio doors with two hinged panels require weatherstripping on the door stop of both the left and right frame sections, the top frame, and a special astragal seal where the two door panels meet at center. The astragal is the vertical strip on the active door panel that covers the gap between the two panels when both are closed. A worn or damaged astragal is the highest-leakage point on most French patio door installations and should be assessed and replaced before addressing any other gap on the door.

The passive leaf, the panel that is held stationary by flush bolts, often develops a gap at the top or bottom hinge side as the door settles. If the paper slip test shows no resistance at any point on the passive leaf, the flush bolts may need adjustment to pull the panel tighter against the frame before new weatherstripping is applied.

Read more: How to Install Interior French Doors: Step-by-Step Guide

How Door Material Affects Your Sealing Approach

The door's material determines how it responds to temperature changes and which sealing products adhere correctly. Insulating a door for winter without accounting for material-specific behavior is why many DIY sealing projects work initially and then fail by mid-winter as the material moves with temperature.

Wood Doors

Wood expands in high-humidity conditions and contracts in cold, dry winter air. This movement changes the gap width around the door throughout the season, which means fixed weatherstripping may compress correctly in fall and create a gap again in January when the wood has contracted further. Vinyl V-strip tension seal accommodates this movement best because it maintains contact across a range of gap widths rather than depending on a fixed compression point. Exterior caulk at the frame junction must be flexible-grade, as rigid caulk cracks as the wood moves.

Steel and Fiberglass Doors

Steel and fiberglass doors have minimal dimensional movement with temperature, but they conduct cold through the panel itself. Magnetic weatherstripping, similar to the seal on a refrigerator door, provides the most reliable compression seal on steel doors and does not require adhesives that can fail over time. If the existing magnetic weatherstripping no longer holds a business card without it sliding out, the magnetism has degraded and the strip needs replacement. Fiberglass doors accept the same weatherstripping products as wood doors and are less sensitive to humidity-related movement.

Vinyl Frame Doors

Factory-installed weatherstripping on vinyl-framed doors is designed to be replaced when worn. The replacement strip must match the original channel profile, as vinyl manufacturers use proprietary channel dimensions that vary between brands. Check the door manufacturer's documentation or contact the supplier before purchasing replacement weatherstripping to ensure the new material fits correctly in the existing channel. Applying generic adhesive weatherstripping over a vinyl channel as a substitute typically fails within one season.

When Sealing Is Not Enough: Signs It Is Time to Replace the Door

Sealing materials address weatherstripping wear and gap issues, but they cannot compensate for structural problems. When how to insulate windows and doors for winter guides consistently recommend door replacement, it is usually because one of the following conditions exists.

A warped door panel or frame prevents the door from sitting squarely in the opening, creating a variable-width gap that no standard weatherstripping product closes consistently. A door that requires physical force to latch, or that springs slightly open after latching, is exhibiting warping that weatherstripping cannot address.

A hollow-core door used as an exterior door loses its insulating value when the internal structure degrades from moisture exposure. If the door itself feels cold to the touch even when the room is at normal temperature, the door's core is no longer providing thermal resistance.

Fogged or condensation between glass panels in an insulated glass unit indicates a failed seal within the glass itself. No exterior sealing material resolves this; the glass unit requires replacement. Our glass doors collection includes insulated glass configurations with modern sealed units that maintain their clarity and thermal performance across full seasonal cycles.

When any of these conditions are present, understanding whether a slab replacement or a full prehung unit is the right path affects the installation scope significantly. Our guide on door slab vs prehung covers how this decision affects preparation work. For homeowners considering an energy-efficient upgrade, our interior French doors collection includes configurations with factory-installed multi-point sealing and thermally broken frames that perform consistently through full winter seasons.

Frequently Asked Questions About Sealing Door Gaps for Winter

The following questions cover what homeowners most commonly ask after attempting a first round of weatherstripping that did not fully resolve the draft.

How much can sealing door gaps save on energy bills?

The US Department of Energy estimates that sealing air leaks can reduce heating and cooling costs by 10 to 20 percent. Exterior doors are among the top three sources of residential air infiltration, and homes with weatherstripping more than five years old typically see the largest improvement.

How often do door seals need to be replaced?

Exterior caulk should be replaced every three to five years. Weatherstripping on high-traffic exterior doors lasts two to three years. Door sweeps hold for three to seven years depending on material and traffic level. Low-traffic side and back doors typically maintain their seals longer.

Is it better to seal the door from inside or outside?

Most sealing work is done from inside. The exception is caulking the exterior frame-to-wall junction, which requires exterior-rated flexible caulk applied from outside. Weatherstripping and door sweeps are always installed from inside, and draft testing is also performed from inside.

What is the fastest way to stop a cold draft right now?

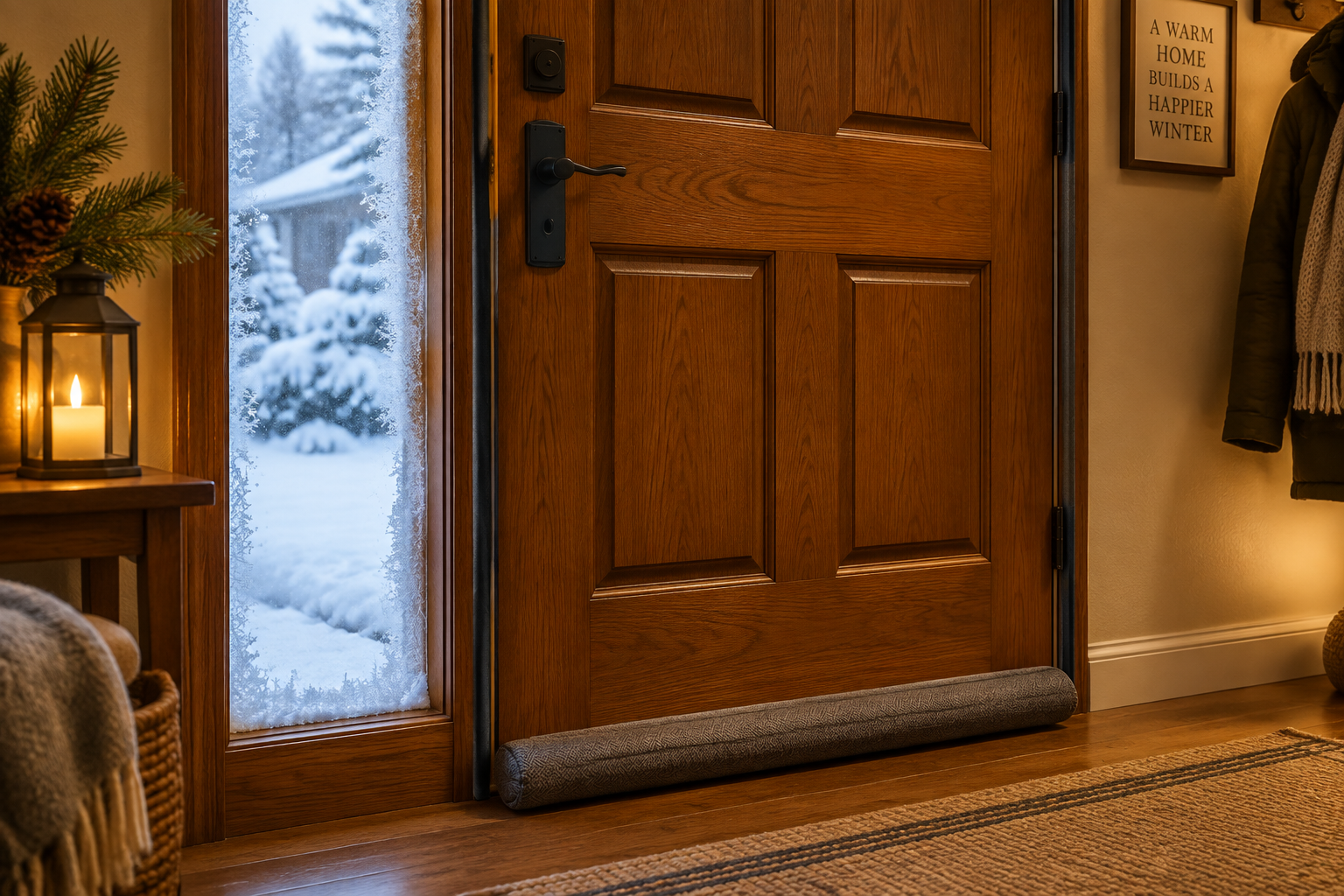

A door snake placed at the door bottom provides immediate airflow reduction with no installation required. Self-adhesive foam tape along the frame perimeter is a same-day fix for a season. Both are short-term measures that permanent door sweeps and compression weatherstripping should replace.

Why is my door still drafty after I added weatherstripping?

Most weatherstripping failures trace to three causes: the surface was not cleaned before application, new material was applied over old flattened material rather than replacing it, or the bottom gap and exterior caulk junction were left unaddressed alongside the perimeter weatherstripping.

See more: What Is a Prehung Interior Door? Difference Between Prehung and Slab Door

Conclusion

The most effective approach to seal door gaps for winter works location by location: bottom sweep and threshold first, perimeter weatherstripping next, exterior caulk at the frame junction, and corner seals last. Patio doors require the additional step of addressing the meeting rail or astragal. When sealing materials cannot resolve the draft because the door itself is warped, cored out, or simply past its service life, replacement delivers what surface fixes cannot.
